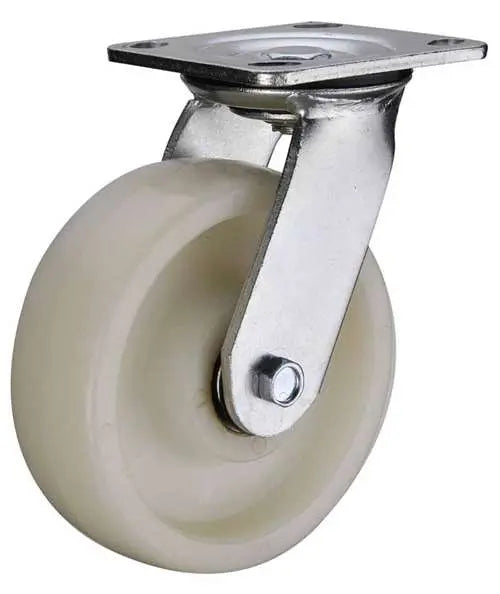

4" Inch Caster 1102 lbs Swivel Polyamide (Nylon) Top Plate

4" Inch Caster 1102 lbs Swivel Polyamide (Nylon) Top Plate

Item Name: 4inch-Swivel-Caster-005

Wheel Diameter: 100mm

Wheel Width: 50mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 142mm

Overall Height Inch: 5.591"

Mounting Type: Top Plate

Top Plate Size: 115mm x 110mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Polyamide (Nylon)

Tire: Polyamide (Nylon)

Bearing type: Double ball beaing

Load Capacity: 1102 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Don't think too much, use 4inch-Swivel-Caster-005 to get your DIY move and manuver around. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The overall height of the caster is 142mm or 5.591" inch. Mounted via a Top Plate that has the size of 115mm x 110mm x 6mm and the holes distance of 72mm x 85mm. The caster core is made of Polyamide (Nylon) and has a Polyamide (Nylon) tire with a low friction Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 1102 lb with a Swivel type. Temperature range = -40 to 180 F. Buy the 4inch-Swivel-Caster-005 now, just add the quantity to basket and click on Checkout.
