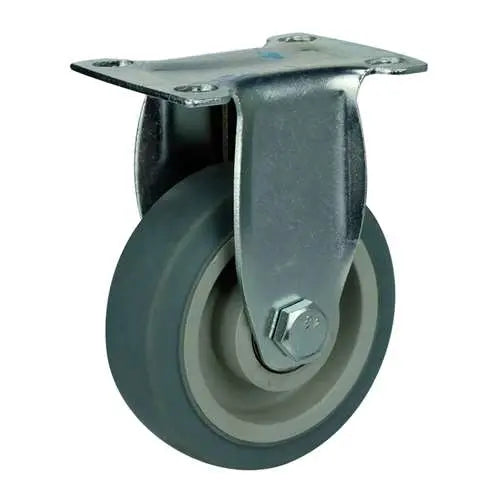

4" Inch Caster 198 lbs Rigid Thermoplastic Rubber Top Plate

4" Inch Caster 198 lbs Rigid Thermoplastic Rubber Top Plate

Item Name: 4inch-Caster-025

Wheel Diameter: 100mm

Wheel Width: 30mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 130mm

Overall Height Inch: 5.118"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Double ball bearing

Load Capacity: 198 lb

Mounting: Rigid

Temperature Range: -40 to 180 F

4inch-Caster-025 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. The wheel has a width of 30mm=1.181" inch. The overall height of the caster is 130mm or 5.118" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 45mm x 72mm. Rolling with a wheel core material of Thermoplastic Rubber and a Thermoplastic Rubber tire rolled over Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 198 lb with a Rigid type. The temperature range is -40 to 180 F. Enjoy our 4inch-Caster-025, we wish all the best in your project.
