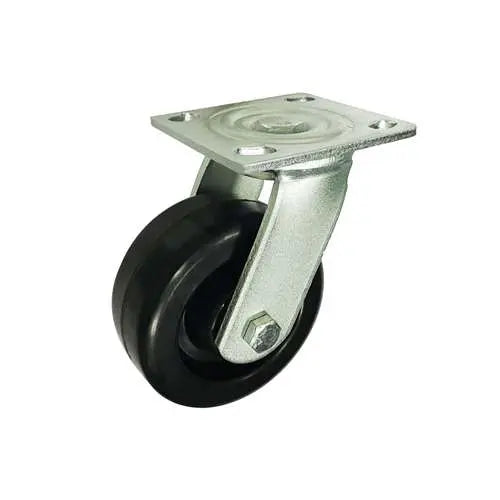

5" Inch Caster 661 lbs Swivel Phenolic and 0-180ºC Top Plate

5" Inch Caster 661 lbs Swivel Phenolic and 0-180ºC Top Plate

Item Name: 5inch-Swivel-Caster-040

Wheel Diameter: 125mm

Wheel Width: 50mm

Wheel Diameter: 5" Inch = 125mm

Overall Height: 165mm

Overall Height Inch: 6.496"

Mounting Type: Top Plate

Top Plate Size: 160mm x 114mm

Hole distance: 129mm x 74mm

Wheel Core: Phenolic and 0-180ºC

Tire: Phenolic and 0-180ºC

Bearing type: Roller bearing

Load Capacity: 661 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Mounting the 5inch-Swivel-Caster-040 Wheel Caster can make your life easier, push or pull your new project on wheels. This wheel caster has a wheel diameter of 125mm or 4.921" inch in inches. The thickness of the wheel is 50mm or 1.969" inch. The overall height of the caster is 165mm or 6.496" inch. Mounted via a Top Plate that has the size of 160mm x 114mm and the holes distance of 129mm x 74mm. The Roller bearing design will enable the Phenolic and 0-180ºC tire to roll easily with a core made of Phenolic and 0-180ºC. Each caster will carry the load of 661 lb and is Swivel type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 5inch-Swivel-Caster-040 in order to have it :).
