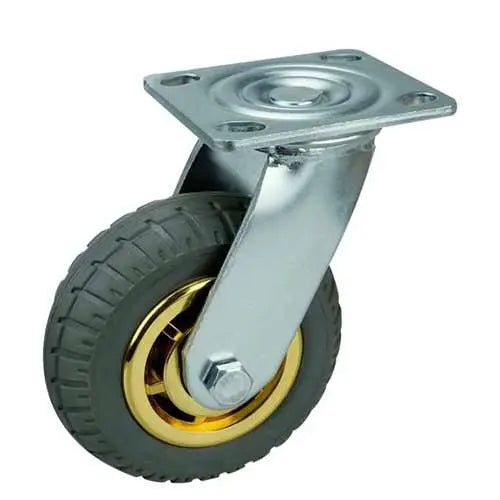

6" Inch Caster 551 lbs Swivel Polypropylene core and Rubber Top Plate

6" Inch Caster 551 lbs Swivel Polypropylene core and Rubber Top Plate

Item Name: 6inch-Swivel-Caster-027

Wheel Diameter: 150mm

Wheel Width: 53mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 195mm

Overall Height Inch: 7.677"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polypropylene core and Rubber

Tire: Polypropylene core and Rubber

Bearing type: Double ball beaing

Load Capacity: 551 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Whatever you are building needed to be on wheels, here come the 6inch-Swivel-Caster-027. This caster is rolled on a wheel that has 150mm diameter/5.906" inch inches. Dimensions of the caster wheel is 53mm (2.087" inch). The Caster with the wheel from end to end is 195mm = 7.677" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The Double ball beaing design will enable the Polypropylene core and Rubber tire to roll easily with a core made of Polypropylene core and Rubber. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 551 lb with a Swivel type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 6inch-Swivel-Caster-027 in order to have it :).
