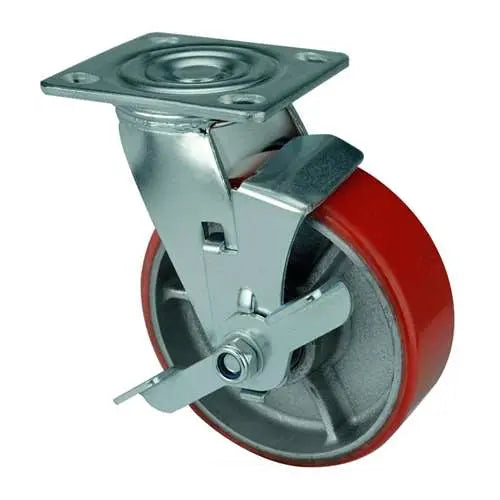

6" Inch Caster 992 lbs Swivel and Center Locking Cast Iron and Polyurethane Top Plate

6" Inch Caster 992 lbs Swivel and Center Brake Cast Iron and Polyurethane Top Plate

Item Name: 6inch-Lock-Swivel-Caster-008

Wheel Diameter: 150mm

Wheel Width: 50mm

Wheel Diameter: 6" Inch = 150mm

Overall Height: 200mm

Overall Height Inch: 7.874"

Mounting Type: Top Plate

Top Plate Size: 115mm x 100mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Cast Iron and Polyurethane

Tire: Cast Iron and Polyurethane

Bearing type: Roller bearing

Load Capacity: 992 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

6inch-Lock-Swivel-Caster-008 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 150mm that is equal to 5.906" inch with imperial units. The wheel has a width of 50mm=1.969" inch. The Caster with the wheel from end to end is 200mm = 7.874" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 115mm x 100mm x 6mm and holes distance of 72mm x 85mm. Low drag was achieved by a Cast Iron and Polyurethane core on a Cast Iron and Polyurethane tire spinning freely with a Roller bearing. Bearing in mind that every caster wheel has the load capacity of 992 lb with a Swivel and Center Locking type. The temperature range is -40 to 180 F. Buy the 6inch-Lock-Swivel-Caster-008 now, just add the quantity to basket and click on Checkout.
