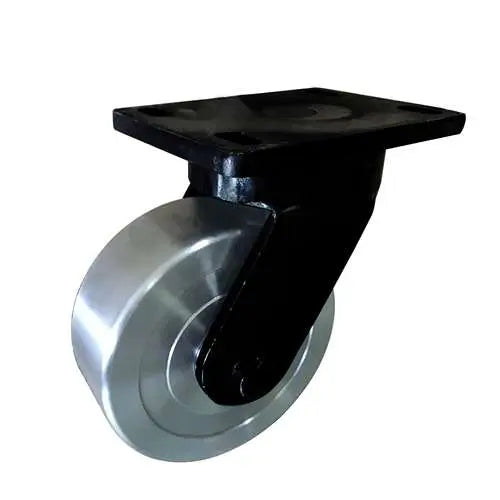

10" Inch Caster 3307 lbs Swivel Cast iron polyurethane Top Plate
10" Inch Caster 3307 lbs Swivel Cast iron polyurethane Top Plate
You need 10inch-Swivel-Caster-002 to have your office desk, equipment or even a machine to easily roll them around. Diameter of the caster wheel is a metric standard 250mm that is equal to 9.843" inch with imperial units. Dimensions of the caster wheel is 75mm (2.953" inch). The overall height of the caster is 320mm or 12.598" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 200mm x 153mm Top Plate: 14mm+housing: 10mm and holes distance of 160mm x 90mm. Rolling with a wheel core material of Cast iron polyurethane and a Cast iron polyurethane tire rolled over Precision double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 3307 lb with a Swivel type. The temperature range is -40 to 180 F. Buy the 10inch-Swivel-Caster-002 now, just add the quantity to basket and click on Checkout.
