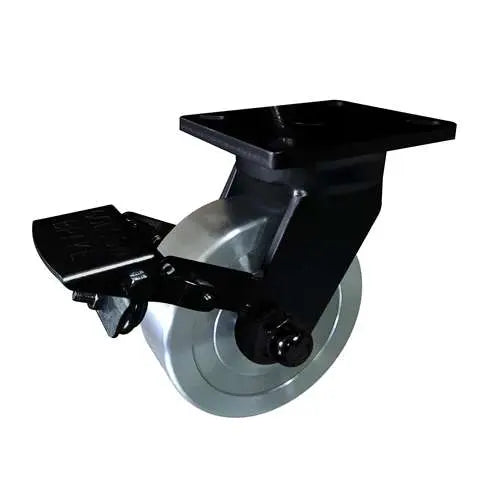

12" Inch Caster 3307 lbs Swivel and Upper Locking Cast iron polyurethane Top Plate

12" Inch Caster 3307 lbs Swivel and Upper Brake Cast iron polyurethane Top Plate

Item Name: 12inch-Lock-Swivel-Caster-002

Wheel Diameter: 300mm

Wheel Width: 75mm

Wheel Diameter: 12" Inch = 300mm

Overall Height: 365mm

Overall Height Inch: 14.370"

Mounting Type: Top Plate

Top Plate Size: 200mm x 153mm Top Plate: 14mm+housing: 10mm

Hole distance: 160mm x 90mm

Wheel Core: Cast iron polyurethane

Tire: Cast iron polyurethane

Bearing type: Precision double ball bearing

Load Capacity: 3307 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Don't think too much, use 12inch-Lock-Swivel-Caster-002 to get your DIY move and manuver around. Diameter of the caster wheel is a metric standard 300mm that is equal to 11.811" inch with imperial units. The thickness of the wheel is 75mm or 2.953" inch. The overall height of the caster is 365mm or 14.370" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 200mm x 153mm Top Plate: 14mm+housing: 10mm and holes distance of 160mm x 90mm. The caster core is made of Cast iron polyurethane and has a Cast iron polyurethane tire with a low friction Precision double ball bearing. Bearing in mind that every caster wheel has the load capacity of 3307 lb with a Swivel and Upper Locking type. Temperature range = -40 to 180 F. Enjoy our 12inch-Lock-Swivel-Caster-002, we wish all the best in your project.
