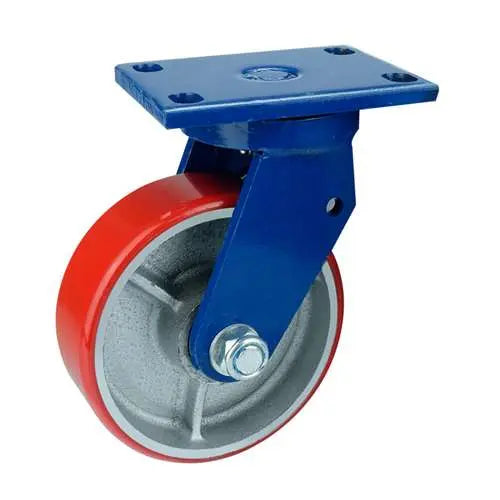

12" Inch Caster 3307 lbs Swivel Cast iron polyurethane Top Plate

12" Inch Caster 3307 lbs Swivel Cast iron polyurethane Top Plate

Item Name: 12inch-Swivel-Caster-001

Wheel Diameter: 300mm

Wheel Width: 75mm

Wheel Diameter: 12" Inch = 300mm

Overall Height: 365mm

Overall Height Inch: 14.370"

Mounting Type: Top Plate

Top Plate Size: 200mm x 153mm Top Plate: 14mm+housing: 10mm

Hole distance: 160mm x 90mm

Wheel Core: Cast iron polyurethane

Tire: Cast iron polyurethane

Bearing type: Precision double ball bearing

Load Capacity: 3307 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Don't think too much, use 12inch-Swivel-Caster-001 to get your DIY move and manuver around. Diameter of the caster wheel is a metric standard 300mm that is equal to 11.811" inch with imperial units. The wheel has a width of 75mm=2.953" inch. The overall height of the caster is 365mm or 14.370" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 200mm x 153mm Top Plate: 14mm+housing: 10mm with the holes distance of 160mm x 90mm. The caster core is made of Cast iron polyurethane and has a Cast iron polyurethane tire with a low friction Precision double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 3307 lb with a Swivel type. The temperature range is -40 to 180 F. Buy the 12inch-Swivel-Caster-001 now, just add the quantity to basket and click on Checkout.
