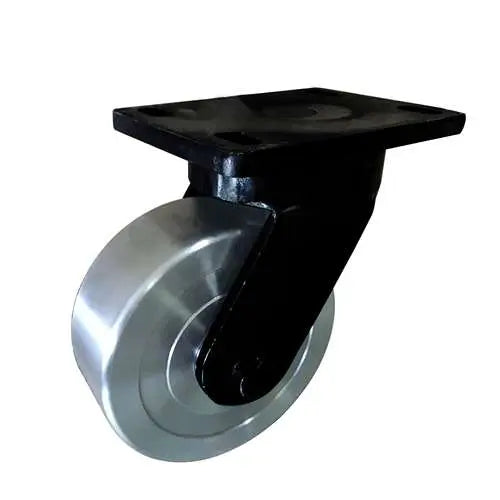

12" Inch Caster 3307 lbs Swivel Cast iron polyurethane Top Plate
12" Inch Caster 3307 lbs Swivel Cast iron polyurethane Top Plate
Couldn't load pickup availability
Don't think too much, use 12inch-Swivel-Caster-002 to get your DIY move and manuver around. This caster is rolled on a wheel that has 300mm diameter/11.811" inch inches. Dimensions of the caster wheel is 75mm (2.953" inch). The overall height of the caster is 365mm or 14.370" inch. Mounted via a Top Plate that has the size of 200mm x 153mm Top Plate: 14mm+housing: 10mm and the holes distance of 160mm x 90mm. The Precision double ball bearing design will enable the Cast iron polyurethane tire to roll easily with a core made of Cast iron polyurethane. Each caster will carry the load of 3307 lb and is Swivel type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 12inch-Swivel-Caster-002 in order to have it :).
