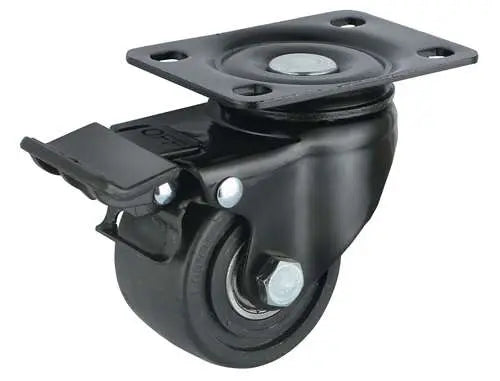

2" Inch Caster 220 lbs Swivel and Upper Locking Nylon Top Plate

2" Inch Caster 220 lbs Swivel and Upper Brake Nylon Top Plate

Item Name: 2inch-Lock-Swivel-Caster-020

Wheel Diameter: 50mm

Wheel Width: 30.5mm

Wheel Diameter: 2" Inch = 50mm

Overall Height: 68mm

Overall Height Inch: 2.677"

Mounting Type: Top Plate

Top Plate Size: 71mm x 54mm

Hole distance: 54mm x 36mm

Wheel Core: Nylon

Tire: Nylon

Bearing type: Ball bearing

Load Capacity: 220 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

2inch-Lock-Swivel-Caster-020 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 50mm that is equal to 1.969" inch with imperial units. The thickness of the wheel is 30.5mm or 1.201" inch. The caster dimensions heightwise is 68mm/2.677" inch. Mounted via a Top Plate that has the size of 71mm x 54mm and the holes distance of 54mm x 36mm. The caster core is made of Nylon and has a Nylon tire with a low friction Ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 220 lb with a Swivel and Upper Locking type. Temperature range = -40 to 180 F. Remember, you will have to buy the 2inch-Lock-Swivel-Caster-020 in order to have it :).
