KCW Casters

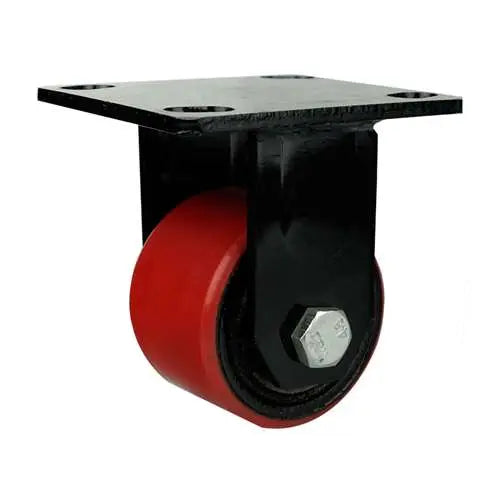

3" Inch Caster 1102 lbs Fixed Polyurethane and Iron Top Plate

3" Inch Caster 1102 lbs Fixed Polyurethane and Iron Top Plate

Regular price $19.08 USD
Regular price Sale price $19.08 USD
Sale Sold out
SKU: 3inch-Caster-007
3" Inch Caster 1102 lbs Fixed Polyurethane and Iron Top Plate
  • Item Name: 3inch-Caster-007
  • Wheel Diameter: 75mm
  • Wheel Width: 50mm
  • Wheel Diameter: 3" Inch = 75mm
  • Overall Height: 110mm
  • Overall Height Inch: 4.331"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Polyurethane and Iron
  • Tire: Polyurethane and Iron
  • Bearing type: Ball bearing
  • Load Capacity: 1102 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • Don't think too much, use 3inch-Caster-007 to get your DIY move and manuver around. This wheel caster has a wheel diameter of 75mm or 2.953" inch in inches. The wheel has a width of 50mm=1.969" inch. The overall height of the caster is 110mm or 4.331" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. Low drag was achieved by a Polyurethane and Iron core on a Polyurethane and Iron tire spinning freely with a Ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 1102 lb with a Fixed type. Temperature range = -40 to 180 F. Enjoy our 3inch-Caster-007, we wish all the best in your project.
