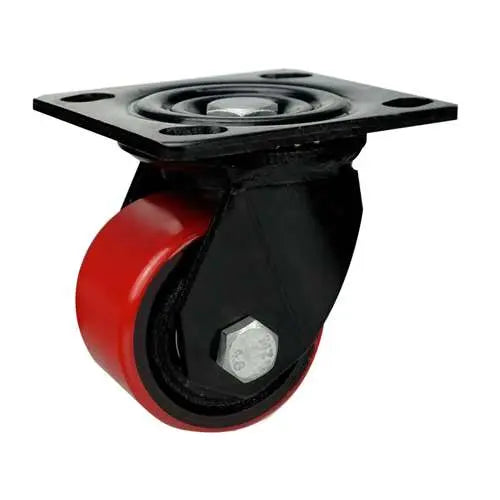

3" Inch Caster 1102 lbs Swivel Polyurethane and Iron Top Plate

3" Inch Caster 1102 lbs Swivel Polyurethane and Iron Top Plate

Item Name: 3inch-Swivel-Caster-014

Wheel Diameter: 75mm

Wheel Width: 50mm

Wheel Diameter: 3" Inch = 75mm

Overall Height: 110mm

Overall Height Inch: 4.331"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polyurethane and Iron

Tire: Polyurethane and Iron

Bearing type: Ball bearing

Load Capacity: 1102 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Whatever you are building needed to be on wheels, here come the 3inch-Swivel-Caster-014. This caster is rolled on a wheel that has 75mm diameter/2.953" inch inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 110mm/4.331" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Low drag was achieved by a Polyurethane and Iron core on a Polyurethane and Iron tire spinning freely with a Ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 1102 lb with a Swivel type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 3inch-Swivel-Caster-014 in order to have it :).
