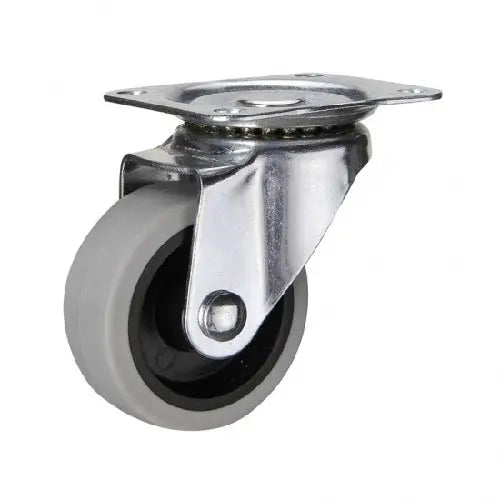

3" Inch Caster 121 lbs Swivel Thermoplastic Rubber Top Plate

3" Inch Caster 121 lbs Swivel Thermoplastic Rubber Top Plate

Item Name: 3inch-Swivel-Caster-020

Wheel Diameter: 75mm

Wheel Width: 21mm

Wheel Diameter: 3" Inch = 75mm

Overall Height: 93mm

Overall Height Inch: 3.661"

Mounting Type: Top Plate

Top Plate Size: 65mm x 54mm

Hole distance: 51mm x 38mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Plain bearing

Load Capacity: 121 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Whatever you are building needed to be on wheels, here come the 3inch-Swivel-Caster-020. This wheel caster has a wheel diameter of 75mm or 2.953" inch in inches. Dimensions of the caster wheel is 21mm (.827" inch). The Caster with the wheel from end to end is 93mm = 3.661" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 65mm x 54mm and holes distance of 51mm x 38mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Plain bearing. Bearing in mind that every caster wheel has the load capacity of 121 lb with a Swivel type. Temperature range = -40 to 180 F. Buy the 3inch-Swivel-Caster-020 now, just add the quantity to basket and click on Checkout.
