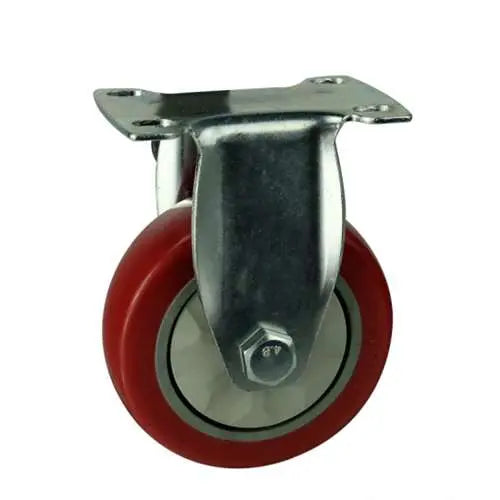

3" Inch Caster 132 lbs Rigid Polyvinyl Chloride Top Plate

3" Inch Caster 132 lbs Rigid Polyvinyl Chloride Top Plate

Item Name: 3inch-Caster-003

Wheel Diameter: 75mm

Wheel Width: 30mm

Wheel Diameter: 3" Inch = 75mm

Overall Height: 105mm

Overall Height Inch: 4.134"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Ball bearing

Load Capacity: 132 lb

Mounting: Rigid

Temperature Range: -40 to 180 F

Whatever you are building needed to be on wheels, here come the 3inch-Caster-003. Diameter of the caster wheel is a metric standard 75mm that is equal to 2.953" inch with imperial units. The wheel has a width of 30mm=1.181" inch. The Caster with the wheel from end to end is 105mm = 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. The Ball bearing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Each caster will carry the load of 132 lb and is Rigid type. The temperature range is -40 to 180 F. Buy the 3inch-Caster-003 now, just add the quantity to basket and click on Checkout.
