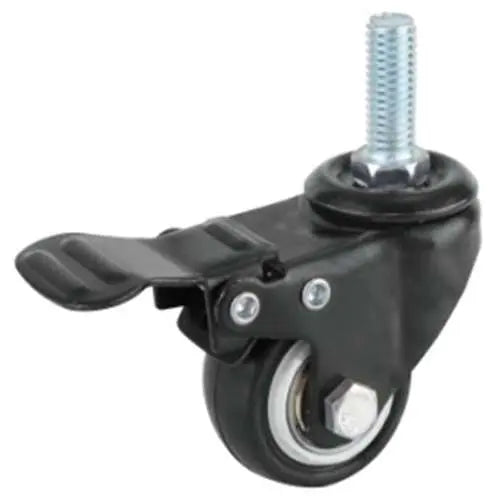

3" Inch Caster 132 lbs Swivel and Upper Locking Polyvinyl Chloride

3" Inch Caster 132 lbs Swivel and Upper Brake Polyvinyl Chloride

Item Name: 3inch-Lock-Swivel-Caster-002

Wheel Diameter: 75mm

Wheel Diameter: 3" Inch = 75mm

Stem size: 12mm x 25mm

Overall Height: 110mm

Overall Height Inch: 4.331"

Wheel Core: Polyvinyl Chloride

Tire: Polyurethane

Mounting: Swivel and Upper Locking

Load Capacity: 132 lb

Temperature Range: -40 to 180 F

3inch-Lock-Swivel-Caster-002 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 75mm diameter/2.953" inch inches. The thickness of the wheel is 75mm or 2.953" inch. The Caster with the wheel from end to end is 110mm = 4.331" inch. This wheel caster can be mounted using a with the dimensions of 92mm x 65mm and holes distance of 73mm x 45mm. The caster core is made of Polyvinyl Chloride and has a Polyurethane tire with a low friction Ball bearing. Each caster will carry the load of 132 lb and is Swivel and Upper Locking type. Temperature range = -40 to 180 F. Enjoy our 3inch-Lock-Swivel-Caster-002, we wish all the best in your project.
