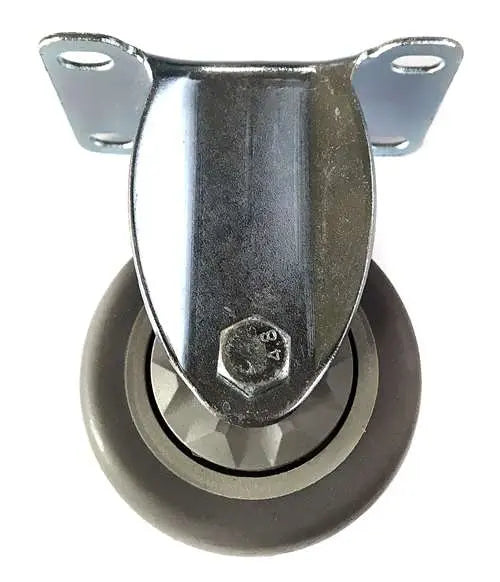

3" Inch Caster 176 lbs Fixed Thermoplastic Rubber Top Plate
Item Name: 3inch-Caster-004
Wheel Diameter: 75mm
Wheel Width: 30mm
Wheel Diameter: 3" Inch = 75mm
Overall Height: 105mm
Overall Height Inch: 4.134"
Mounting Type: Top Plate
Top Plate Size: 93mm x 62mm
Hole distance: 73mm x 45mm
Wheel Core: Thermoplastic Rubber
Tire: Thermoplastic Rubber
Bearing type: Ball bearing
Load Capacity: 176 lb
Mounting: Fixed
Temperature Range: -40 to 180 F
You need 3inch-Caster-004 to have your office desk, equipment or even a machine to easily roll them around. This caster is rolled on a wheel that has 75mm diameter/2.953" inch inches. Dimensions of the caster wheel is 30mm (1.181" inch). The caster dimensions heightwise is 105mm/4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 73mm x 45mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Ball bearing. Bearing in mind that every caster wheel has the load capacity of 176 lb with a Fixed type. Last and not least the temperature range = -40 to 180 F. Buy the 3inch-Caster-004 now, just add the quantity to basket and click on Checkout.
