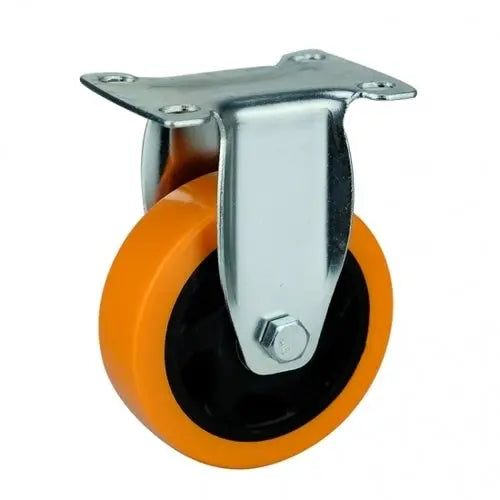

3" Inch Caster 176 lbs Rigid Polyvinyl Chloride Top Plate

3" Inch Caster 176 lbs Rigid Polyvinyl Chloride Top Plate

Item Name: 3inch-Caster-002

Wheel Diameter: 75mm

Wheel Width: 30mm

Wheel Diameter: 3" Inch = 75mm

Overall Height: 105mm

Overall Height Inch: 4.134"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Double ball bearing

Load Capacity: 176 lb

Mounting: Rigid

Temperature Range: -40 to 180 F

You need 3inch-Caster-002 to have your office desk, equipment or even a machine to easily roll them around. Diameter of the caster wheel is a metric standard 75mm that is equal to 2.953" inch with imperial units. The thickness of the wheel is 30mm or 1.181" inch. The Caster with the wheel from end to end is 105mm = 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Rolling with a wheel core material of Polyvinyl Chloride and a Polyvinyl Chloride tire rolled over Double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 176 lb with a Rigid type. The temperature range is -40 to 180 F. Buy the 3inch-Caster-002 now, just add the quantity to basket and click on Checkout.
