KCW Casters

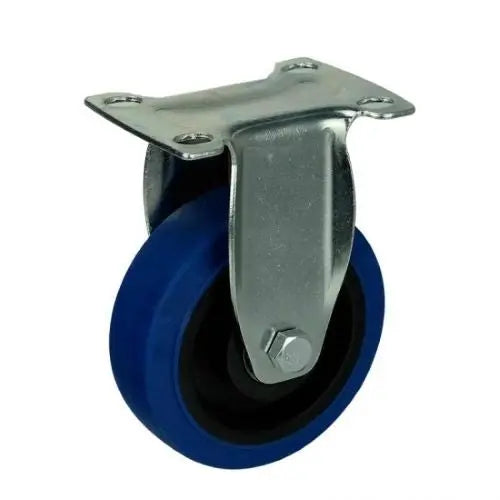

3" Inch Caster 176 lbs Rigid Thermoplastic Rubber Top Plate

3" Inch Caster 176 lbs Rigid Thermoplastic Rubber Top Plate

Regular price $4.85 USD
Regular price Sale price $4.85 USD
Sale Sold out
SKU: 3inch-Caster-001
3" Inch Caster 176 lbs Rigid Thermoplastic Rubber Top Plate
  • Item Name: 3inch-Caster-001
  • Wheel Diameter: 75mm
  • Wheel Width: 30mm
  • Wheel Diameter: 3" Inch = 75mm
  • Overall Height: 105mm
  • Overall Height Inch: 4.134"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Thermoplastic Rubber
  • Tire: Thermoplastic Rubber
  • Bearing type: Double ball bearing
  • Load Capacity: 176 lb
  • Mounting: Rigid
  • Temperature Range: -40 to 180 F

  • Mounting the 3inch-Caster-001 Wheel Caster can make your life easier, push or pull your new project on wheels. This wheel caster has a wheel diameter of 75mm or 2.953" inch in inches. The thickness of the wheel is 30mm or 1.181" inch. The Caster with the wheel from end to end is 105mm = 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 176 lb with a Rigid type. The temperature range is -40 to 180 F. Remember, you will have to buy the 3inch-Caster-001 in order to have it :).
