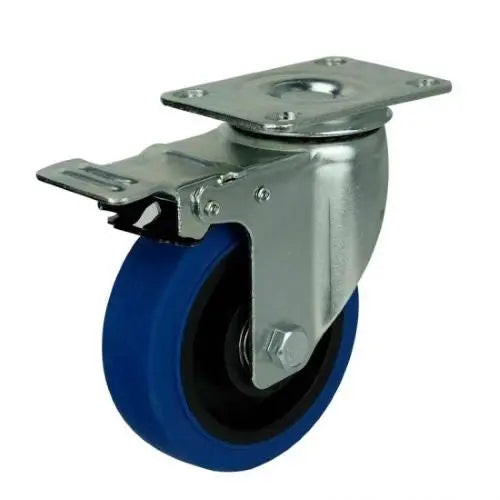

3" Inch Caster 176 lbs Swivel and Upper Locking Thermoplastic Rubber Top Plate

3" Inch Caster 176 lbs Swivel and Upper Brake Thermoplastic Rubber Top Plate

Item Name: 3inch-Lock-Swivel-Caster-005

Wheel Diameter: 75mm

Wheel Width: 30mm

Wheel Diameter: 3" Inch = 75mm

Overall Height: 105mm

Overall Height Inch: 4.134"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Double ball bearing

Load Capacity: 176 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Imagine your office chair has no wheel caster, you would be carrying it right and left, install 3inch-Lock-Swivel-Caster-005 instead. Diameter of the caster wheel is a metric standard 75mm that is equal to 2.953" inch with imperial units. The thickness of the wheel is 30mm or 1.181" inch. The overall height of the caster is 105mm or 4.134" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 45mm x 72mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Double ball bearing. Each caster will carry the load of 176 lb and is Swivel and Upper Locking type. The temperature range is -40 to 180 F. Remember, you will have to buy the 3inch-Lock-Swivel-Caster-005 in order to have it :).
