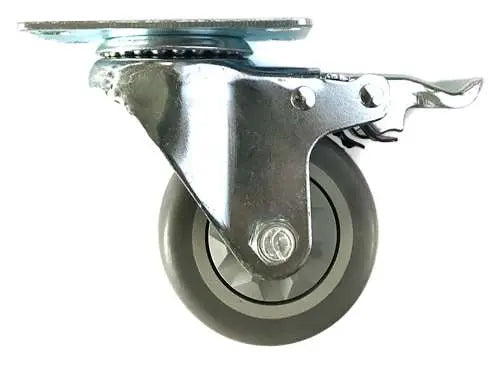

3" Inch Caster 176 lbs Swivel and Upper Locking Thermoplastic Rubber Top Plate

3" Inch Caster 176 lbs Swivel and Upper Brake Thermoplastic Rubber Top Plate

Item Name: 3inch-Lock-Swivel-Caster-008

Wheel Diameter: 75mm

Wheel Width: 30mm

Wheel Diameter: 3" Inch = 75mm

Overall Height: 105mm

Overall Height Inch: 4.134"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 73mm x 45mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Ball bearing

Load Capacity: 176 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

You need 3inch-Lock-Swivel-Caster-008 to have your office desk, equipment or even a machine to easily roll them around. Diameter of the caster wheel is a metric standard 75mm that is equal to 2.953" inch with imperial units. The wheel has a width of 30mm=1.181" inch. The Caster with the wheel from end to end is 105mm = 4.134" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 73mm x 45mm. The Ball bearing design will enable the Thermoplastic Rubber tire to roll easily with a core made of Thermoplastic Rubber. Each caster will carry the load of 176 lb and is Swivel and Upper Locking type. The temperature range is -40 to 180 F. Enjoy our 3inch-Lock-Swivel-Caster-008, we wish all the best in your project.
