KCW Casters

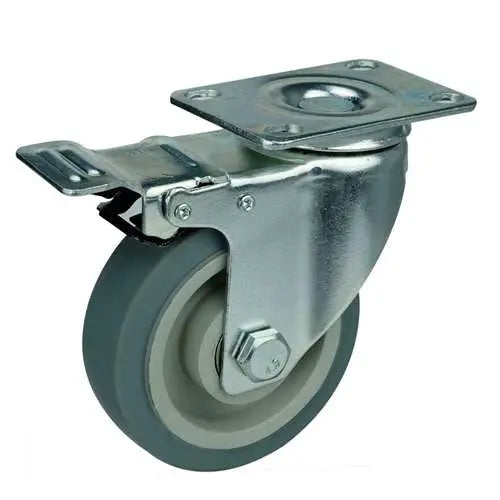

3" Inch Caster 176 lbs Swivel and Upper Locking Thermoplastic Rubber Top Plate

3" Inch Caster 176 lbs Swivel and Upper Locking Thermoplastic Rubber Top Plate

Regular price $6.59 USD
Regular price Sale price $6.59 USD
Sale Sold out
SKU: 3inch-Lock-Swivel-Caster-015
3" Inch Caster 176 lbs Swivel and Upper Brake Thermoplastic Rubber Top Plate
  • Item Name: 3inch-Lock-Swivel-Caster-015
  • Wheel Diameter: 75mm
  • Wheel Width: 30mm
  • Wheel Diameter: 3" Inch = 75mm
  • Overall Height: 105mm
  • Overall Height Inch: 4.134"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Thermoplastic Rubber
  • Tire: Thermoplastic Rubber
  • Bearing type: Double ball bearing
  • Load Capacity: 176 lb
  • Mounting: Swivel and Upper Locking
  • Temperature Range: -40 to 180 F

  • Don't think too much, use 3inch-Lock-Swivel-Caster-015 to get your DIY move and manuver around. This wheel caster has a wheel diameter of 75mm or 2.953" inch in inches. The wheel has a width of 30mm=1.181" inch. The Caster with the wheel from end to end is 105mm = 4.134" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 45mm x 72mm. Low drag was achieved by a Thermoplastic Rubber core on a Thermoplastic Rubber tire spinning freely with a Double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 176 lb with a Swivel and Upper Locking type. Temperature range = -40 to 180 F. Enjoy our 3inch-Lock-Swivel-Caster-015, we wish all the best in your project.
