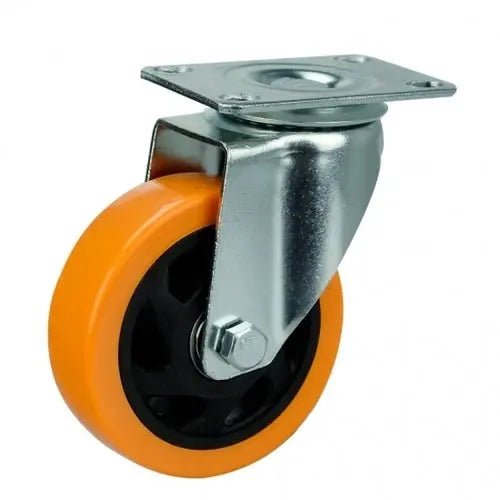

3" Inch Caster 176 lbs Swivel Polyvinyl Chloride Top Plate

3" Inch Caster 176 lbs Swivel Polyvinyl Chloride Top Plate

Item Name: 3inch-Swivel-Caster-007

Wheel Diameter: 75mm

Wheel Width: 30mm

Wheel Diameter: 3" Inch = 75mm

Overall Height: 105mm

Overall Height Inch: 4.134"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Double ball bearing

Load Capacity: 176 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Mounting 3inch-Swivel-Caster-007 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 75mm diameter/2.953" inch inches. The wheel has a width of 30mm=1.181" inch. The caster dimensions heightwise is 105mm/4.134" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 45mm x 72mm. The Double ball bearing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Each caster will carry the load of 176 lb and is Swivel type. Last and not least the temperature range = -40 to 180 F. Buy the 3inch-Swivel-Caster-007 now, just add the quantity to basket and click on Checkout.
