KCW Casters

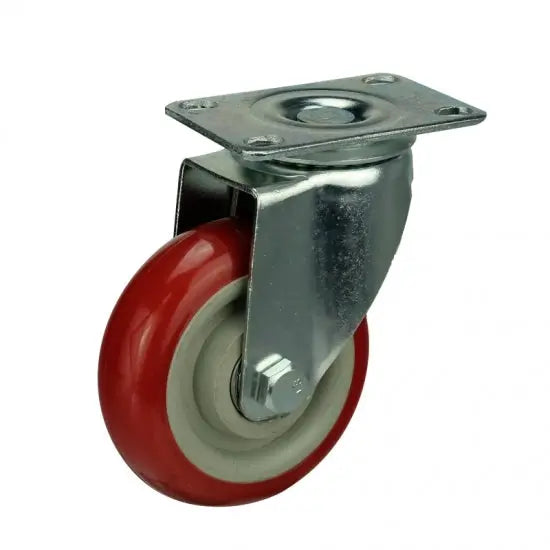

3" Inch Caster 176 lbs Swivel Polyvinyl Chloride Top Plate

3" Inch Caster 176 lbs Swivel Polyvinyl Chloride Top Plate

Regular price $3.93 USD
Regular price Sale price $3.93 USD
Sale Sold out
SKU: 3inch-Swivel-Caster-016
3" Inch Caster 176 lbs Swivel Polyvinyl Chloride Top Plate
  • Item Name: 3inch-Swivel-Caster-016
  • Wheel Diameter: 75mm
  • Wheel Width: 30mm
  • Wheel Diameter: 3" Inch = 75mm
  • Overall Height: 105mm
  • Overall Height Inch: 4.134"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 73mm x 45mm
  • Wheel Core: Polyvinyl Chloride
  • Tire: Polyvinyl Chloride
  • Bearing type: Double ball bearing
  • Load Capacity: 176 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Mounting the 3inch-Swivel-Caster-016 Wheel Caster can make your life easier, push or pull your new project on wheels. This wheel caster has a wheel diameter of 75mm or 2.953" inch in inches. The wheel has a width of 30mm=1.181" inch. The overall height of the caster is 105mm or 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 73mm x 45mm. Low drag was achieved by a Polyvinyl Chloride core on a Polyvinyl Chloride tire spinning freely with a Double ball bearing. Each caster will carry the load of 176 lb and is Swivel type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 3inch-Swivel-Caster-016 in order to have it :).
