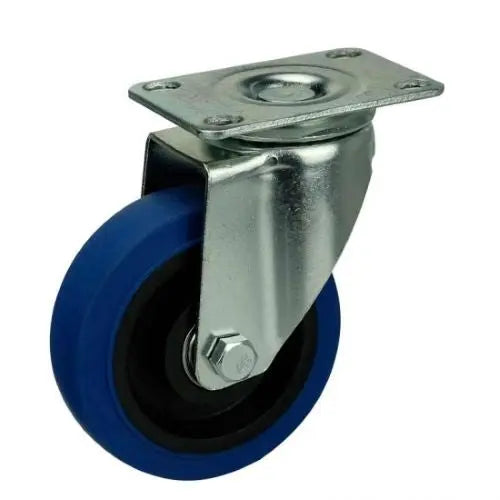

3" Inch Caster 176 lbs Swivel Thermoplastic Rubber Top Plate

3" Inch Caster 176 lbs Swivel Thermoplastic Rubber Top Plate

Item Name: 3inch-Swivel-Caster-006

Wheel Diameter: 75mm

Wheel Width: 30mm

Wheel Diameter: 3" Inch = 75mm

Overall Height: 105mm

Overall Height Inch: 4.134"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Double ball bearing

Load Capacity: 176 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Mounting 3inch-Swivel-Caster-006 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 75mm diameter/2.953" inch inches. The thickness of the wheel is 30mm or 1.181" inch. The caster dimensions heightwise is 105mm/4.134" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. Rolling with a wheel core material of Thermoplastic Rubber and a Thermoplastic Rubber tire rolled over Double ball bearing. Each caster will carry the load of 176 lb and is Swivel type. The temperature range is -40 to 180 F. Enjoy our 3inch-Swivel-Caster-006, we wish all the best in your project.
