KCW Casters

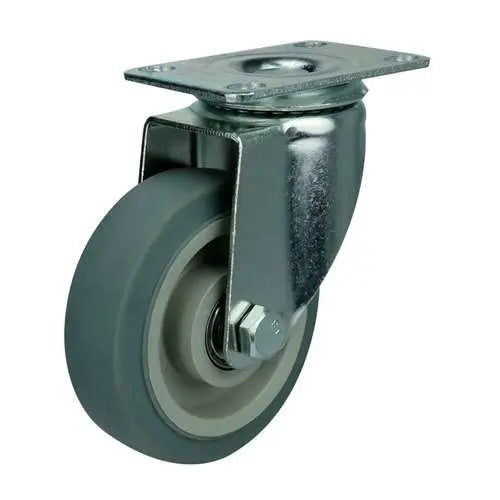

3" Inch Caster 176 lbs Swivel Thermoplastic Rubber Top Plate

3" Inch Caster 176 lbs Swivel Thermoplastic Rubber Top Plate

Regular price $5.50 USD
Regular price Sale price $5.50 USD
Sale Sold out
SKU: 3inch-Swivel-Caster-017
3" Inch Caster 176 lbs Swivel Thermoplastic Rubber Top Plate
  • Item Name: 3inch-Swivel-Caster-017
  • Wheel Diameter: 75mm
  • Wheel Width: 30mm
  • Wheel Diameter: 3" Inch = 75mm
  • Overall Height: 105mm
  • Overall Height Inch: 4.134"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Thermoplastic Rubber
  • Tire: Thermoplastic Rubber
  • Bearing type: Double ball bearing
  • Load Capacity: 176 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Wheel casters like the 3inch-Swivel-Caster-017 are used to roll your built machine or equipment back and forth. This wheel caster has a wheel diameter of 75mm or 2.953" inch in inches. The thickness of the wheel is 30mm or 1.181" inch. The Caster with the wheel from end to end is 105mm = 4.134" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. The Double ball bearing design will enable the Thermoplastic Rubber tire to roll easily with a core made of Thermoplastic Rubber. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 176 lb with a Swivel type. The temperature range is -40 to 180 F. Enjoy our 3inch-Swivel-Caster-017, we wish all the best in your project.
