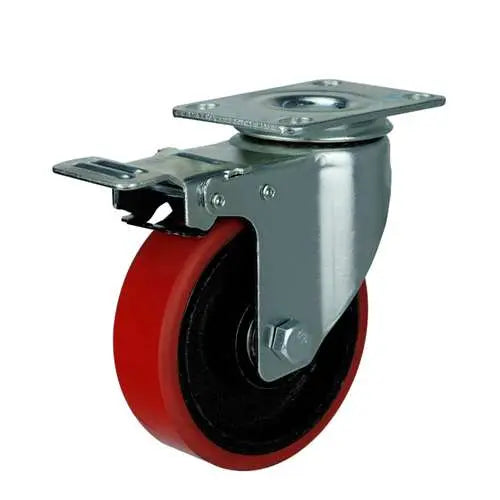

3" Inch Caster 220 lbs Swivel and Upper Locking Iron and Polyurethane Top Plate

3" Inch Caster 220 lbs Swivel and Upper Brake Iron and Polyurethane Top Plate

Item Name: 3inch-Lock-Swivel-Caster-013

Wheel Diameter: 75mm

Wheel Width: 32mm

Wheel Diameter: 3" Inch = 75mm

Overall Height: 105mm

Overall Height Inch: 4.134"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Iron and Polyurethane

Tire: Iron and Polyurethane

Bearing type: Double ball bearing

Load Capacity: 220 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Mounting the 3inch-Lock-Swivel-Caster-013 Wheel Caster can make your life easier, push or pull your new project on wheels. This wheel caster has a wheel diameter of 75mm or 2.953" inch in inches. The wheel has a width of 32mm=1.260" inch. The overall height of the caster is 105mm or 4.134" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Rolling with a wheel core material of Iron and Polyurethane and a Iron and Polyurethane tire rolled over Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 220 lb with a Swivel and Upper Locking type. Temperature range = -40 to 180 F. Remember, you will have to buy the 3inch-Lock-Swivel-Caster-013 in order to have it :).
