KCW Casters

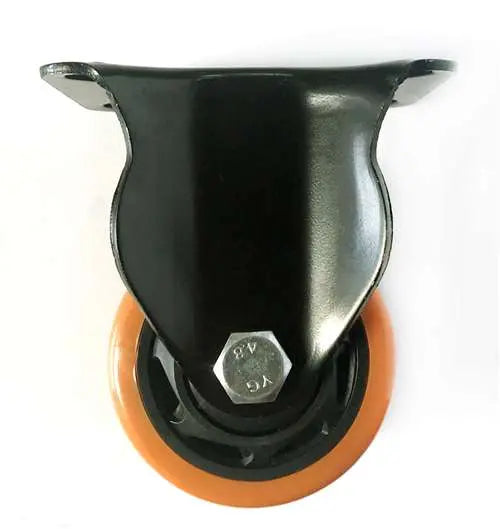

3" Inch Caster 441 lbs Fixed Polyurethane and Polypropylene Top Plate
3" Inch Caster 441 lbs Fixed Polyurethane and Polypropylene Top Plate
Couldn't load pickup availability
Wheel casters like the 3inch-Caster-005 are used to roll your built machine or equipment back and forth. Diameter of the caster wheel is a metric standard 75mm that is equal to 2.953" inch with imperial units. Dimensions of the caster wheel is 40mm (1.575" inch). The caster dimensions heightwise is 195mm/7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 110mm x 100mm x 4mm fork:3.5mm and holes distance of 85mm x 75mm. Rolling with a wheel core material of Polyurethane and Polypropylene and a Polyurethane and Polypropylene tire rolled over ball bearing. Each caster will carry the load of 441 lb and is Fixed type. Last and not least the temperature range = -40 to 180 F. Remember, you will have to buy the 3inch-Caster-005 in order to have it :).
