3" Inch Caster 441 lbs Fixed Polyurethane and Polypropylene Top Plate
3" Inch Caster 441 lbs Fixed Polyurethane and Polypropylene Top Plate
Regular price
$8.81 USD
Regular price
Sale price
$8.81 USD
Unit price
/
per

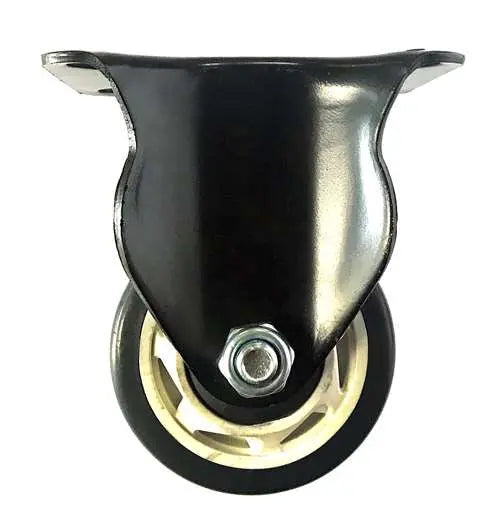

3" Inch Caster 441 lbs Fixed Polyurethane and Polypropylene Top Plate
Item Name: 3inch-Caster-014
Wheel Diameter: 75mm
Wheel Width: 40mm
Wheel Diameter: 3" Inch = 75mm
Mounting Type: Top Plate
Top Plate Size: 110mm x 100mm x 4mm fork:3.5mm
Hole distance: 85mm x 75mm
Wheel Core: Polyurethane and Polypropylene
Tire: Polyurethane and Polypropylene
Bearing type: ball bearing
Load Capacity: 441 lb
Mounting: Fixed
Temperature Range: -40 to 180 F
Whatever you are building needed to be on wheels, here come the 3inch-Caster-014. Diameter of the caster wheel is a metric standard 75mm that is equal to 2.953" inch with imperial units. Dimensions of the caster wheel is 40mm (1.575" inch). The overall height of the caster is 195mm or 7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 110mm x 100mm x 4mm fork:3.5mm and holes distance of 85mm x 75mm. Low drag was achieved by a Polyurethane and Polypropylene core on a Polyurethane and Polypropylene tire spinning freely with a ball bearing. Each caster will carry the load of 441 lb and is Fixed type. Temperature range = -40 to 180 F. Enjoy our 3inch-Caster-014, we wish all the best in your project.
