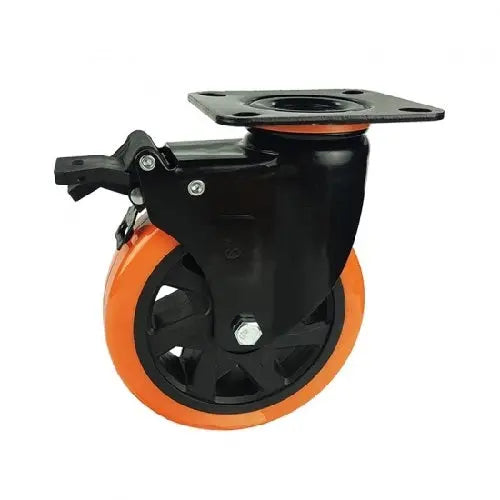

3" Inch Caster 441 lbs Swivel and Upper Locking Polyurethane and Polypropylene Top Plate

3" Inch Caster 441 lbs Swivel and Upper Brake Polyurethane and Polypropylene Top Plate

Item Name: 3inch-Lock-Swivel-Caster-009

Wheel Diameter: 75mm

Wheel Width: 40mm

Wheel Diameter: 3" Inch = 75mm

Mounting Type: Top Plate

Top Plate Size: 110mm x 100mm x 4mm fork:3.5mm

Hole distance: 85mm x 75mm

Wheel Core: Polyurethane and Polypropylene

Tire: Polyurethane and Polypropylene

Bearing type: ball bearing

Load Capacity: 441 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Mounting the 3inch-Lock-Swivel-Caster-009 Wheel Caster can make your life easier, push or pull your new project on wheels. Diameter of the caster wheel is a metric standard 75mm that is equal to 2.953" inch with imperial units. Dimensions of the caster wheel is 40mm (1.575" inch). The caster dimensions heightwise is 195mm/7.677" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 110mm x 100mm x 4mm fork:3.5mm and holes distance of 85mm x 75mm. The ball bearing design will enable the Polyurethane and Polypropylene tire to roll easily with a core made of Polyurethane and Polypropylene. Each caster will carry the load of 441 lb and is Swivel and Upper Locking type. Temperature range = -40 to 180 F. Remember, you will have to buy the 3inch-Lock-Swivel-Caster-009 in order to have it :).
