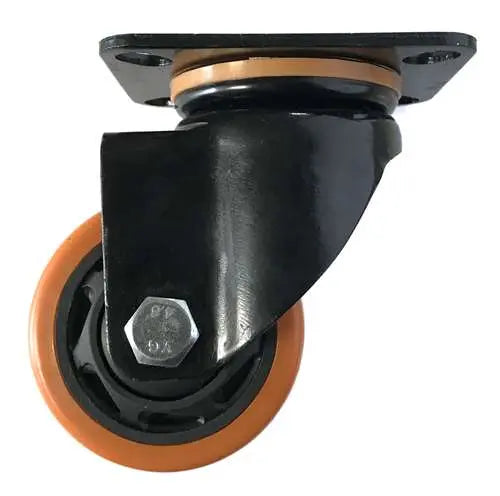

3" Inch Caster 441 lbs Swivel Polyurethane and Polypropylene Top Plate

3" Inch Caster 441 lbs Swivel Polyurethane and Polypropylene Top Plate

Item Name: 3inch-Swivel-Caster-011

Wheel Diameter: 75mm

Wheel Width: 40mm

Wheel Diameter: 3" Inch = 75mm

Mounting Type: Top Plate

Top Plate Size: 110mm x 100mm x 4mm fork:3.5mm

Hole distance: 85mm x 75mm

Wheel Core: Polyurethane and Polypropylene

Tire: Polyurethane and Polypropylene

Bearing type: ball bearing

Load Capacity: 441 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

Mounting 3inch-Swivel-Caster-011 is the solution of making your project to move around by pushing. This wheel caster has a wheel diameter of 75mm or 2.953" inch in inches. The wheel has a width of 40mm=1.575" inch. The overall height of the caster is 195mm or 7.677" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 110mm x 100mm x 4mm fork:3.5mm with the holes distance of 85mm x 75mm. The caster core is made of Polyurethane and Polypropylene and has a Polyurethane and Polypropylene tire with a low friction ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 441 lb with a Swivel type. The temperature range is -40 to 180 F. Enjoy our 3inch-Swivel-Caster-011, we wish all the best in your project.
