KCW Casters

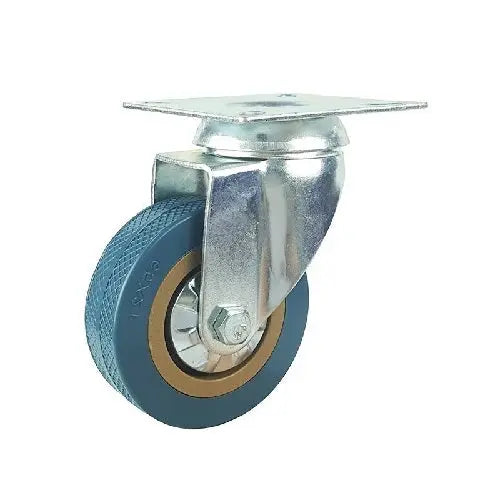

3" Inch Caster 66 lbs Swivel Grey rubber Top Plate

3" Inch Caster 66 lbs Swivel Grey rubber Top Plate

Regular price $2.45 USD
Regular price Sale price $2.45 USD
Sale Sold out
SKU: 3inch-Swivel-Caster-026
3" Inch Caster 66 lbs Swivel Grey rubber Top Plate
  • Item Name: 3inch-Swivel-Caster-026
  • Wheel Diameter: 75mm
  • Wheel Width: 21mm
  • Wheel Diameter: 3" Inch = 75mm
  • Overall Height: 104mm
  • Overall Height Inch: 4.094"
  • Mounting Type: Top Plate
  • Top Plate Size: 65mm x 65mm
  • Hole distance: 49mm x 49mm
  • Wheel Core: Grey rubber
  • Tire: Grey rubber
  • Bearing type: Plain bearing
  • Load Capacity: 66 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • 3inch-Swivel-Caster-026 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 75mm that is equal to 2.953" inch with imperial units. Dimensions of the caster wheel is 21mm (.827" inch). The overall height of the caster is 104mm or 4.094" inch. Mounted via a Top Plate that has the size of 65mm x 65mm and the holes distance of 49mm x 49mm. Rolling with a wheel core material of Grey rubber and a Grey rubber tire rolled over Plain bearing. Each caster will carry the load of 66 lb and is Swivel type. Temperature range = -40 to 180 F. Remember, you will have to buy the 3inch-Swivel-Caster-026 in order to have it :).
