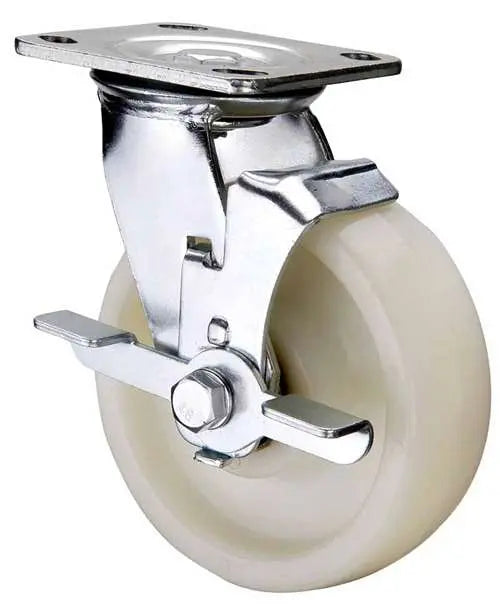

4" Inch Caster 1102 lbs Side Locking Polyamide (Nylon) Top Plate

4" Inch Caster 1102 lbs Side Brake Polyamide (Nylon) Top Plate

Item Name: 4inch-Lock-Caster-001

Wheel Diameter: 100mm

Wheel Width: 50mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 142mm

Overall Height Inch: 5.591"

Mounting Type: Top Plate

Top Plate Size: 115mm x 110mm x 6mm

Hole distance: 72mm x 85mm

Wheel Core: Polyamide (Nylon)

Tire: Polyamide (Nylon)

Bearing type: Double ball beaing

Load Capacity: 1102 lb

Mounting: Side Locking

Temperature Range: -40 to 180 F

You need 4inch-Lock-Caster-001 to have your office desk, equipment or even a machine to easily roll them around. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. The thickness of the wheel is 50mm or 1.969" inch. The overall height of the caster is 142mm or 5.591" inch. Mounted via a Top Plate that has the size of 115mm x 110mm x 6mm and the holes distance of 72mm x 85mm. The Double ball beaing design will enable the Polyamide (Nylon) tire to roll easily with a core made of Polyamide (Nylon). Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 1102 lb with a Side Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 4inch-Lock-Caster-001, we wish all the best in your project.
