KCW Casters

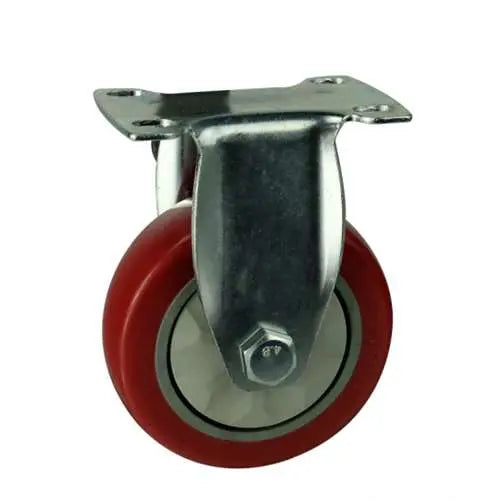

4" Inch Caster 154 lbs Rigid Polyvinyl Chloride Top Plate

4" Inch Caster 154 lbs Rigid Polyvinyl Chloride Top Plate

Regular price $3.93 USD
Regular price Sale price $3.93 USD
Sale Sold out
SKU: 4inch-Caster-010
4" Inch Caster 154 lbs Rigid Polyvinyl Chloride Top Plate
  • Item Name: 4inch-Caster-010
  • Wheel Diameter: 100mm
  • Wheel Width: 30mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 130mm
  • Overall Height Inch: 5.118"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Polyvinyl Chloride
  • Tire: Polyvinyl Chloride
  • Bearing type: Ball bearing
  • Load Capacity: 154 lb
  • Mounting: Rigid
  • Temperature Range: -40 to 180 F

  • Don't think too much, use 4inch-Caster-010 to get your DIY move and manuver around. Diameter of the caster wheel is a metric standard 100mm that is equal to 3.937" inch with imperial units. Dimensions of the caster wheel is 30mm (1.181" inch). The Caster with the wheel from end to end is 130mm = 5.118" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 45mm x 72mm. The Ball bearing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Each caster will carry the load of 154 lb and is Rigid type. Temperature range = -40 to 180 F. Buy the 4inch-Caster-010 now, just add the quantity to basket and click on Checkout.
