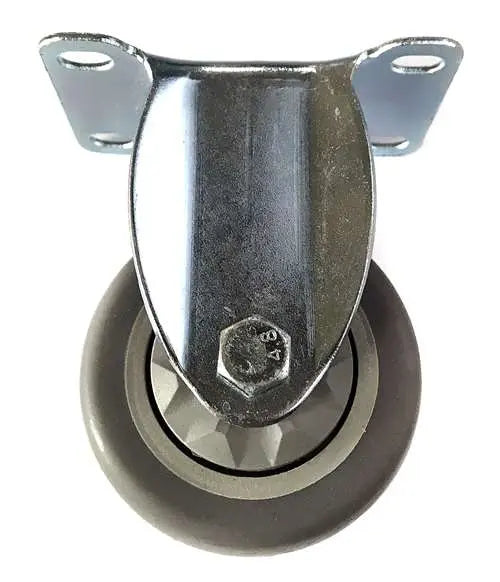

4" Inch Caster 198 lbs Fixed Thermoplastic Rubber Top Plate

4" Inch Caster 198 lbs Fixed Thermoplastic Rubber Top Plate

Item Name: 4inch-Caster-011

Wheel Diameter: 100mm

Wheel Width: 30mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 130mm

Overall Height Inch: 5.118"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 73mm x 45mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Ball bearing

Load Capacity: 198 lb

Mounting: Fixed

Temperature Range: -40 to 180 F

4inch-Caster-011 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. The thickness of the wheel is 30mm or 1.181" inch. The caster dimensions heightwise is 130mm/5.118" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 73mm x 45mm. The caster core is made of Thermoplastic Rubber and has a Thermoplastic Rubber tire with a low friction Ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 198 lb with a Fixed type. Last and not least the temperature range = -40 to 180 F. Buy the 4inch-Caster-011 now, just add the quantity to basket and click on Checkout.
