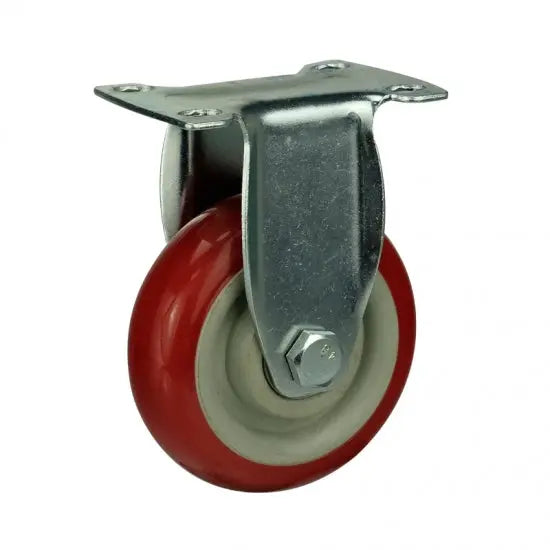

4" Inch Caster 198 lbs Rigid Polyvinyl Chloride Top Plate

4" Inch Caster 198 lbs Rigid Polyvinyl Chloride Top Plate

Item Name: 4inch-Caster-024

Wheel Diameter: 100mm

Wheel Width: 30mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 130mm

Overall Height Inch: 5.118"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 73mm x 45mm

Wheel Core: Polyvinyl Chloride

Tire: Polyvinyl Chloride

Bearing type: Double ball bearing

Load Capacity: 198 lb

Mounting: Rigid

Temperature Range: -40 to 180 F

You need 4inch-Caster-024 to have your office desk, equipment or even a machine to easily roll them around. Diameter of the caster wheel is a metric standard 100mm that is equal to 3.937" inch with imperial units. The thickness of the wheel is 30mm or 1.181" inch. The overall height of the caster is 130mm or 5.118" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 73mm x 45mm. The Double ball bearing design will enable the Polyvinyl Chloride tire to roll easily with a core made of Polyvinyl Chloride. Bearing in mind that every caster wheel has the load capacity of 198 lb with a Rigid type. Temperature range = -40 to 180 F. Remember, you will have to buy the 4inch-Caster-024 in order to have it :).
