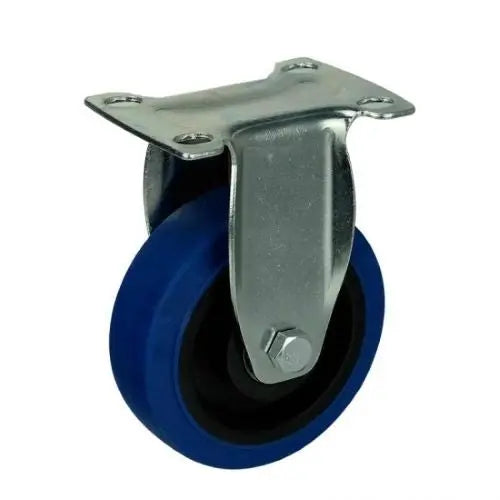

4" Inch Caster 198 lbs Rigid Thermoplastic Rubber Top Plate

4" Inch Caster 198 lbs Rigid Thermoplastic Rubber Top Plate

Item Name: 4inch-Caster-008

Wheel Diameter: 100mm

Wheel Width: 30mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 130mm

Overall Height Inch: 5.118"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Thermoplastic Rubber

Tire: Thermoplastic Rubber

Bearing type: Double ball bearing

Load Capacity: 198 lb

Mounting: Rigid

Temperature Range: -40 to 180 F

Mounting 4inch-Caster-008 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 100mm diameter/3.937" inch inches. The wheel has a width of 30mm=1.181" inch. The Caster with the wheel from end to end is 130mm = 5.118" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. The Double ball bearing design will enable the Thermoplastic Rubber tire to roll easily with a core made of Thermoplastic Rubber. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 198 lb with a Rigid type. Last and not least the temperature range = -40 to 180 F. Buy the 4inch-Caster-008 now, just add the quantity to basket and click on Checkout.
