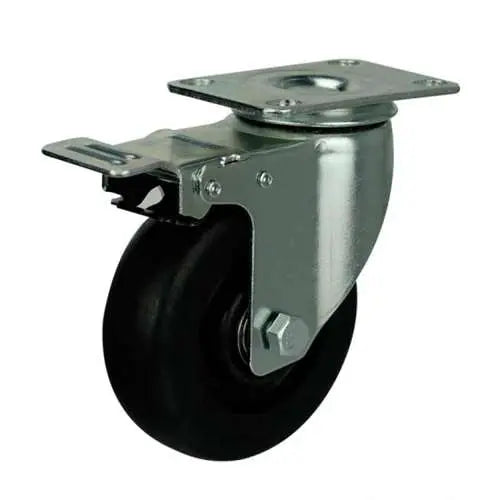

4" Inch Caster 198 lbs Swivel and Upper Locking Phenolic and 0-250ºC Top Plate

4" Inch Caster 198 lbs Swivel and Upper Brake Phenolic and 0-250ºC Top Plate

Item Name: 4inch-Lock-Swivel-Caster-032

Wheel Diameter: 100mm

Wheel Width: 30mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 130mm

Overall Height Inch: 5.118"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Phenolic and 0-250ºC

Tire: Phenolic and 0-250ºC

Bearing type: Double ball bearing

Load Capacity: 198 lb

Mounting: Swivel and Upper Locking

Temperature Range: -40 to 180 F

Mounting 4inch-Lock-Swivel-Caster-032 is the solution of making your project to move around by pushing. This caster is rolled on a wheel that has 100mm diameter/3.937" inch inches. Dimensions of the caster wheel is 30mm (1.181" inch). The overall height of the caster is 130mm or 5.118" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 45mm x 72mm. Low drag was achieved by a Phenolic and 0-250ºC core on a Phenolic and 0-250ºC tire spinning freely with a Double ball bearing. Bearing in mind that every caster wheel has the load capacity of 198 lb with a Swivel and Upper Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 4inch-Lock-Swivel-Caster-032, we wish all the best in your project.
