KCW Casters

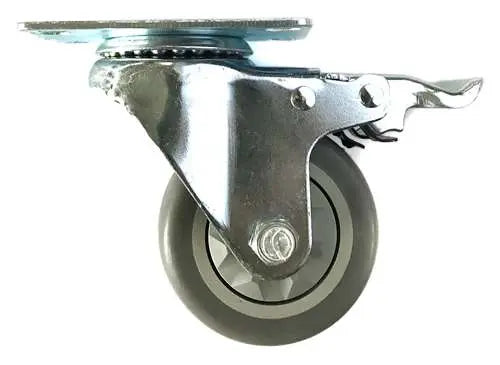

4" Inch Caster 198 lbs Swivel and Upper Locking Thermoplastic Rubber Top Plate

4" Inch Caster 198 lbs Swivel and Upper Locking Thermoplastic Rubber Top Plate

Regular price $7.37 USD
Regular price Sale price $7.37 USD
Sale Sold out
SKU: 4inch-Lock-Swivel-Caster-014
4" Inch Caster 198 lbs Swivel and Upper Brake Thermoplastic Rubber Top Plate
  • Item Name: 4inch-Lock-Swivel-Caster-014
  • Wheel Diameter: 100mm
  • Wheel Width: 30mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 130mm
  • Overall Height Inch: 5.118"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 73mm x 45mm
  • Wheel Core: Thermoplastic Rubber
  • Tire: Thermoplastic Rubber
  • Bearing type: Ball bearing
  • Load Capacity: 198 lb
  • Mounting: Swivel and Upper Locking
  • Temperature Range: -40 to 180 F

  • Mounting the 4inch-Lock-Swivel-Caster-014 Wheel Caster can make your life easier, push or pull your new project on wheels. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. Dimensions of the caster wheel is 30mm (1.181" inch). The Caster with the wheel from end to end is 130mm = 5.118" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 93mm x 62mm with the holes distance of 73mm x 45mm. The caster core is made of Thermoplastic Rubber and has a Thermoplastic Rubber tire with a low friction Ball bearing. Each caster will carry the load of 198 lb and is Swivel and Upper Locking type. Last and not least the temperature range = -40 to 180 F. Buy the 4inch-Lock-Swivel-Caster-014 now, just add the quantity to basket and click on Checkout.
