KCW Casters

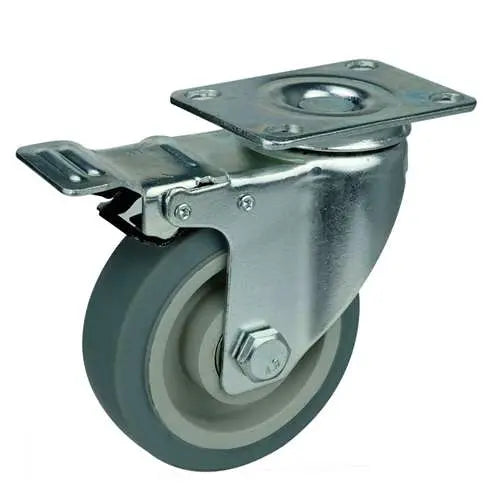

4" Inch Caster 198 lbs Swivel and Upper Locking Thermoplastic Rubber Top Plate

4" Inch Caster 198 lbs Swivel and Upper Locking Thermoplastic Rubber Top Plate

Regular price $7.37 USD
Regular price Sale price $7.37 USD
Sale Sold out
SKU: 4inch-Lock-Swivel-Caster-023
4" Inch Caster 198 lbs Swivel and Upper Brake Thermoplastic Rubber Top Plate
  • Item Name: 4inch-Lock-Swivel-Caster-023
  • Wheel Diameter: 100mm
  • Wheel Width: 30mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 130mm
  • Overall Height Inch: 5.118"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Thermoplastic Rubber
  • Tire: Thermoplastic Rubber
  • Bearing type: Double ball bearing
  • Load Capacity: 198 lb
  • Mounting: Swivel and Upper Locking
  • Temperature Range: -40 to 180 F

  • Don't think too much, use 4inch-Lock-Swivel-Caster-023 to get your DIY move and manuver around. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. The thickness of the wheel is 30mm or 1.181" inch. The caster dimensions heightwise is 130mm/5.118" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. The Double ball bearing design will enable the Thermoplastic Rubber tire to roll easily with a core made of Thermoplastic Rubber. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 198 lb with a Swivel and Upper Locking type. Temperature range = -40 to 180 F. Buy the 4inch-Lock-Swivel-Caster-023 now, just add the quantity to basket and click on Checkout.
