KCW Casters

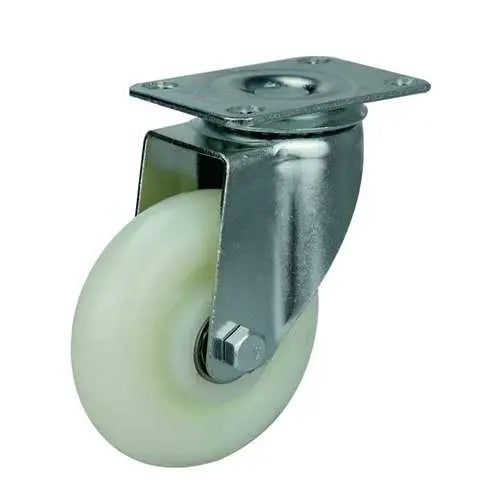

4" Inch Caster 198 lbs Swivel Polypropylene Top Plate

4" Inch Caster 198 lbs Swivel Polypropylene Top Plate

Regular price $4.67 USD
Regular price Sale price $4.67 USD
Sale Sold out
SKU: 4inch-Swivel-Caster-039
4" Inch Caster 198 lbs Swivel Polypropylene Top Plate
  • Item Name: 4inch-Swivel-Caster-039
  • Wheel Diameter: 100mm
  • Wheel Width: 30mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 130mm
  • Overall Height Inch: 5.118"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 45mm x 72mm
  • Wheel Core: Polypropylene
  • Tire: Polypropylene
  • Bearing type: Double ball bearing
  • Load Capacity: 198 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Don't think too much, use 4inch-Swivel-Caster-039 to get your DIY move and manuver around. Diameter of the caster wheel is a metric standard 100mm that is equal to 3.937" inch with imperial units. Dimensions of the caster wheel is 30mm (1.181" inch). The Caster with the wheel from end to end is 130mm = 5.118" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. The caster core is made of Polypropylene and has a Polypropylene tire with a low friction Double ball bearing. Each caster will carry the load of 198 lb and is Swivel type. Last and not least the temperature range = -40 to 180 F. Enjoy our 4inch-Swivel-Caster-039, we wish all the best in your project.
