4" Inch Caster 198 lbs Swivel Polyvinyl Chloride Top Plate

4" Inch Caster 198 lbs Swivel Polyvinyl Chloride Top Plate

Regular price $4.80 USD
Regular price Sale price $4.80 USD
Sale Sold out
SKU: 4inch-Swivel-Caster-026

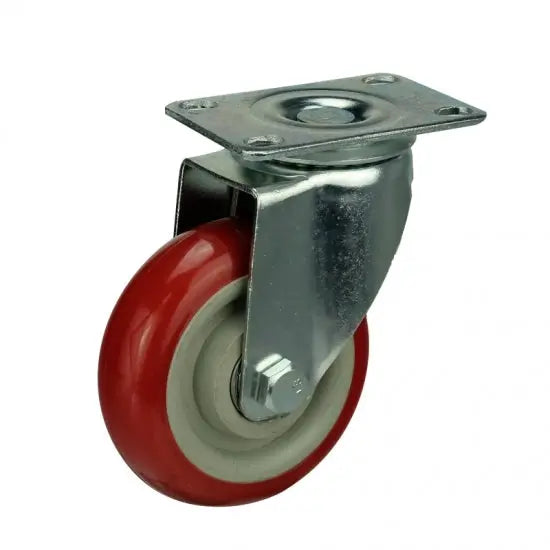

4" Inch Caster 198 lbs Swivel Polyvinyl Chloride Top Plate
  • Item Name: 4inch-Swivel-Caster-026
  • Wheel Diameter: 100mm
  • Wheel Width: 30mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 130mm
  • Overall Height Inch: 5.118"
  • Mounting Type: Top Plate
  • Top Plate Size: 93mm x 62mm
  • Hole distance: 73mm x 45mm
  • Wheel Core: Polyvinyl Chloride
  • Tire: Polyvinyl Chloride
  • Bearing type: Double ball bearing
  • Load Capacity: 198 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Mounting the 4inch-Swivel-Caster-026 Wheel Caster can make your life easier, push or pull your new project on wheels. This caster is rolled on a wheel that has 100mm diameter/3.937" inch inches. Dimensions of the caster wheel is 30mm (1.181" inch). The Caster with the wheel from end to end is 130mm = 5.118" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 93mm x 62mm and holes distance of 73mm x 45mm. Rolling with a wheel core material of Polyvinyl Chloride and a Polyvinyl Chloride tire rolled over Double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 198 lb with a Swivel type. The temperature range is -40 to 180 F. Remember, you will have to buy the 4inch-Swivel-Caster-026 in order to have it :).
