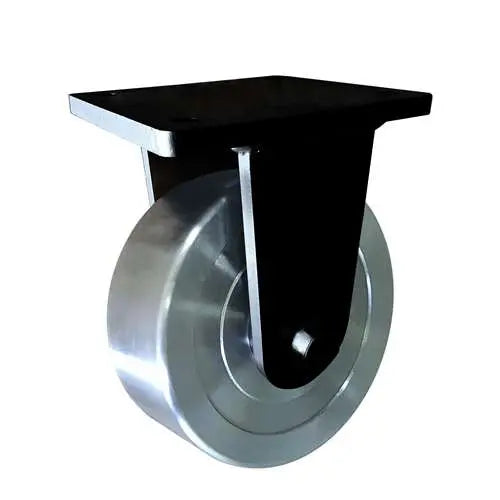

4" Inch Caster 2205 lbs Fixed Cast iron polyurethane Top Plate

4" Inch Caster 2205 lbs Fixed Cast iron polyurethane Top Plate

Item Name: 4inch-Caster-022

Wheel Diameter: 100mm

Wheel Width: 75mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 165mm

Overall Height Inch: 6.496"

Mounting Type: Top Plate

Top Plate Size: 200mm x 153mm Top Plate: 14mm+housing: 10mm

Hole distance: 160mm x 90mm

Wheel Core: Cast iron polyurethane

Tire: Cast iron polyurethane

Bearing type: Precision double ball bearing

Load Capacity: 2205 lb

Mounting: Fixed

Temperature Range: -40 to 180 F

Imagine your office chair has no wheel caster, you would be carrying it right and left, install 4inch-Caster-022 instead. Diameter of the caster wheel is a metric standard 100mm that is equal to 3.937" inch with imperial units. The wheel has a width of 75mm=2.953" inch. The caster dimensions heightwise is 165mm/6.496" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 200mm x 153mm Top Plate: 14mm+housing: 10mm and holes distance of 160mm x 90mm. Rolling with a wheel core material of Cast iron polyurethane and a Cast iron polyurethane tire rolled over Precision double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 2205 lb with a Fixed type. Temperature range = -40 to 180 F. Remember, you will have to buy the 4inch-Caster-022 in order to have it :).
