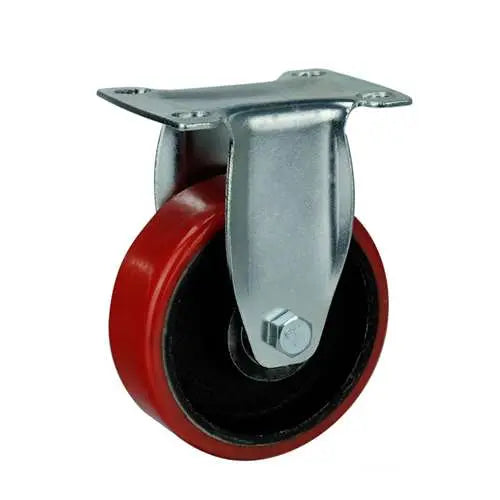

4" Inch Caster 265 lbs Rigid Iron and Polyurethane Top Plate

4" Inch Caster 265 lbs Rigid Iron and Polyurethane Top Plate

Item Name: 4inch-Caster-023

Wheel Diameter: 100mm

Wheel Width: 32mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 130mm

Overall Height Inch: 5.118"

Mounting Type: Top Plate

Top Plate Size: 93mm x 62mm

Hole distance: 45mm x 72mm

Wheel Core: Iron and Polyurethane

Tire: Iron and Polyurethane

Bearing type: Double ball bearing

Load Capacity: 265 lb

Mounting: Rigid

Temperature Range: -40 to 180 F

Whatever you are building needed to be on wheels, here come the 4inch-Caster-023. This caster is rolled on a wheel that has 100mm diameter/3.937" inch inches. The wheel has a width of 32mm=1.260" inch. The caster dimensions heightwise is 130mm/5.118" inch. Mounted via a Top Plate that has the size of 93mm x 62mm and the holes distance of 45mm x 72mm. Rolling with a wheel core material of Iron and Polyurethane and a Iron and Polyurethane tire rolled over Double ball bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 265 lb with a Rigid type. The temperature range is -40 to 180 F. Enjoy our 4inch-Caster-023, we wish all the best in your project.
