KCW Casters

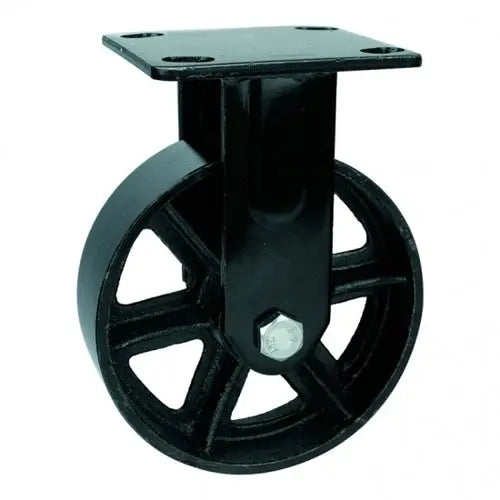

4" Inch Caster 441 lbs Fixed Black Cast iron Top Plate

4" Inch Caster 441 lbs Fixed Black Cast iron Top Plate

Regular price $18.60 USD
Regular price Sale price $18.60 USD
Sale Sold out
SKU: 4inch-Caster-037
4" Inch Caster 441 lbs Fixed Black Cast iron Top Plate
  • Item Name: 4inch-Caster-037
  • Wheel Diameter: 100mm
  • Wheel Width: 50mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 142mm
  • Overall Height Inch: 5.591"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Black Cast iron
  • Tire: Black Cast iron
  • Bearing type: Roller bearing
  • Load Capacity: 441 lb
  • Mounting: Fixed
  • Temperature Range: -40 to 180 F

  • Don't think too much, use 4inch-Caster-037 to get your DIY move and manuver around. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The caster dimensions heightwise is 142mm/5.591" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Low drag was achieved by a Black Cast iron core on a Black Cast iron tire spinning freely with a Roller bearing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 441 lb with a Fixed type. The temperature range is -40 to 180 F. Remember, you will have to buy the 4inch-Caster-037 in order to have it :).
