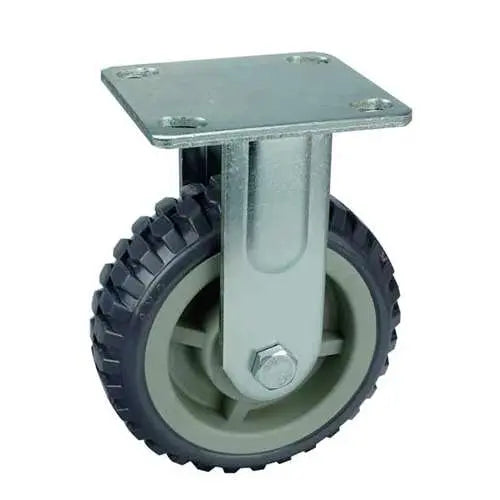

4" Inch Caster 441 lbs Fixed Polypropylene core and Polyurethane Top Plate

4" Inch Caster 441 lbs Fixed Polypropylene core and Polyurethane Top Plate

Item Name: 4inch-Caster-019

Wheel Diameter: 100mm

Wheel Width: 50mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 142mm

Overall Height Inch: 5.591"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polypropylene core and Polyurethane

Tire: Polypropylene core and Polyurethane

Bearing type: Double ball beaing

Load Capacity: 441 lb

Mounting: Fixed

Temperature Range: -40 to 180 F

Mounting 4inch-Caster-019 is the solution of making your project to move around by pushing. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. Dimensions of the caster wheel is 50mm (1.969" inch). The overall height of the caster is 142mm or 5.591" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. The caster core is made of Polypropylene core and Polyurethane and has a Polypropylene core and Polyurethane tire with a low friction Double ball beaing. Here come the maximum load that should be applied on every wheel, remember to add safety factor, when calculating the load capacity 441 lb with a Fixed type. Last and not least the temperature range = -40 to 180 F. Enjoy our 4inch-Caster-019, we wish all the best in your project.
