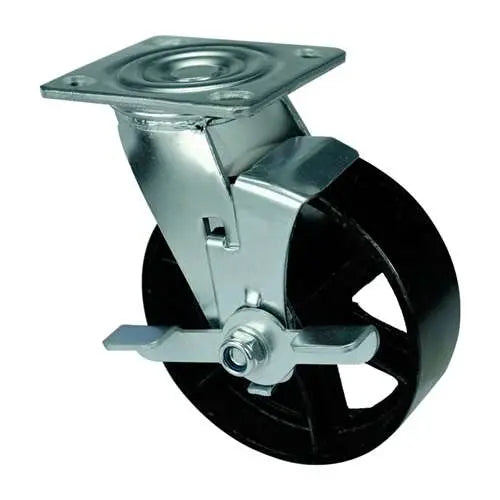

4" Inch Caster 441 lbs Swivel and Center Locking Cast iron Top Plate

4" Inch Caster 441 lbs Swivel and Center Brake Cast iron Top Plate

Item Name: 4inch-Lock-Swivel-Caster-035

Wheel Diameter: 100mm

Wheel Width: 50mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 142mm

Overall Height Inch: 5.591"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Cast iron

Tire: Cast iron

Bearing type: Roller bearing

Load Capacity: 441 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

4inch-Lock-Swivel-Caster-035 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. Diameter of the caster wheel is a metric standard 100mm that is equal to 3.937" inch with imperial units. Dimensions of the caster wheel is 50mm (1.969" inch). The overall height of the caster is 142mm or 5.591" inch. Mounted via a Top Plate that has the size of 100mm x 115mm and the holes distance of 75mm x 85mm. Rolling with a wheel core material of Cast iron and a Cast iron tire rolled over Roller bearing. Each caster will carry the load of 441 lb and is Swivel and Center Locking type. Temperature range = -40 to 180 F. Remember, you will have to buy the 4inch-Lock-Swivel-Caster-035 in order to have it :).
