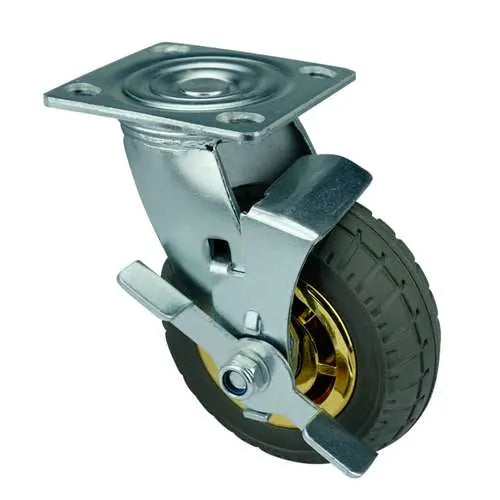

4" Inch Caster 441 lbs Swivel and Center Locking Polypropylene core and Rubber Top Plate

4" Inch Caster 441 lbs Swivel and Center Locking Polypropylene core and Rubber Top Plate

Regular price $15.94 USD
Regular price Sale price $15.94 USD
Sale Sold out
SKU: 4inch-Lock-Swivel-Caster-017

4" Inch Caster 441 lbs Swivel and Center Brake Polypropylene core and Rubber Top Plate

  • Item Name: 4inch-Lock-Swivel-Caster-017
  • Wheel Diameter: 100mm
  • Wheel Width: 53mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 142mm
  • Overall Height Inch: 5.591"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Polypropylene core and Rubber
  • Tire: Polypropylene core and Rubber
  • Bearing type: Double ball beaing
  • Load Capacity: 441 lb
  • Mounting: Swivel and Center Locking
  • Temperature Range: -40 to 180 F

  • 4inch-Lock-Swivel-Caster-017 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any object needed to be moved. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. Dimensions of the caster wheel is 53mm (2.087" inch). The overall height of the caster is 142mm or 5.591" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. The caster core is made of Polypropylene core and Rubber and has a Polypropylene core and Rubber tire with a low friction Double ball bearing. Each caster will carry the load of 441 lb and is Swivel and Center Locking type. The temperature range is -40 to 180 F. Enjoy our 4inch-Lock-Swivel-Caster-017, we wish all the best in your project.
