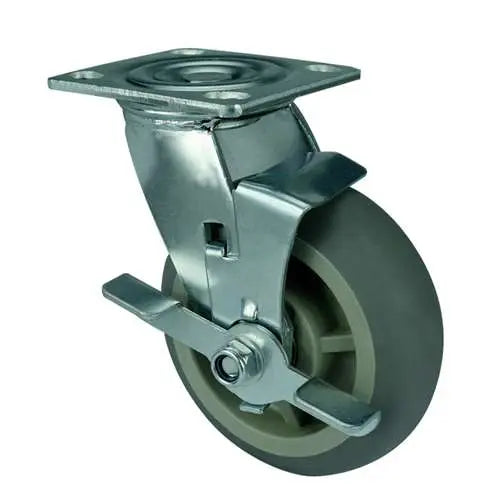

4" Inch Caster 441 lbs Swivel and Center Locking Polypropylene core and Thermoplastic Rubber Top Plate

4" Inch Caster 441 lbs Swivel and Center Brake Polypropylene core and Thermoplastic Rubber Top Plate

Item Name: 4inch-Lock-Swivel-Caster-006

Wheel Diameter: 100mm

Wheel Width: 50mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 142mm

Overall Height Inch: 5.591"

Mounting Type: Top Plate

Top Plate Size: 100mm x 115mm

Hole distance: 75mm x 85mm

Wheel Core: Polypropylene core and Thermoplastic Rubber

Tire: Polypropylene core and Thermoplastic Rubber

Bearing type: Double ball beaing

Load Capacity: 441 lb

Mounting: Swivel and Center Locking

Temperature Range: -40 to 180 F

4inch-Lock-Swivel-Caster-006 is a wheel caster, which is the shortcut of installing wheels on a hospital bed, or any objexct needed to be moved. This caster is rolled on a wheel that has 100mm diameter/3.937" inch inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 142mm/5.591" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Rolling with a wheel core material of Polypropylene core and Thermoplastic Rubber and a Polypropylene core and Thermoplastic Rubber tire rolled over Double ball beaing. Each caster will carry the load of 441 lb and is Swivel and Center Locking type. Last and not least the temperature range = -40 to 180 F. Enjoy our 4inch-Lock-Swivel-Caster-006, we wish all the best in your project.
