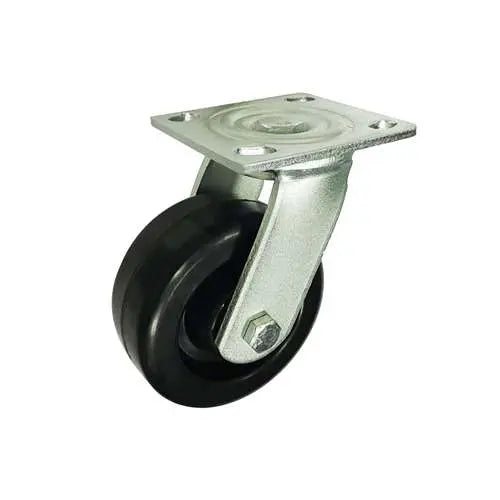

4" Inch Caster 441 lbs Swivel Phenolic and 0-180ºC Top Plate

4" Inch Caster 441 lbs Swivel Phenolic and 0-180ºC Top Plate

Item Name: 4inch-Swivel-Caster-035

Wheel Diameter: 100mm

Wheel Width: 50mm

Wheel Diameter: 4" Inch = 100mm

Overall Height: 142mm

Overall Height Inch: 5.591"

Mounting Type: Top Plate

Top Plate Size: 160mm x 114mm

Hole distance: 129mm x 74mm

Wheel Core: Phenolic and 0-180ºC

Tire: Phenolic and 0-180ºC

Bearing type: Roller bearing

Load Capacity: 441 lb

Mounting: Swivel

Temperature Range: -40 to 180 F

You need 4inch-Swivel-Caster-035 to have your office desk, equipment or even a machine to easily roll them around. Diameter of the caster wheel is a metric standard 100mm that is equal to 3.937" inch with imperial units. The thickness of the wheel is 50mm or 1.969" inch. The overall height of the caster is 142mm or 5.591" inch. This wheel caster can be mounted using a Top Plate with the dimensions of 160mm x 114mm and holes distance of 129mm x 74mm. The caster core is made of Phenolic and 0-180ºC and has a Phenolic and 0-180ºC tire with a low friction Roller bearing. Each caster will carry the load of 441 lb and is Swivel type. The temperature range is -40 to 180 F. Enjoy our 4inch-Swivel-Caster-035, we wish all the best in your project.
