KCW Casters

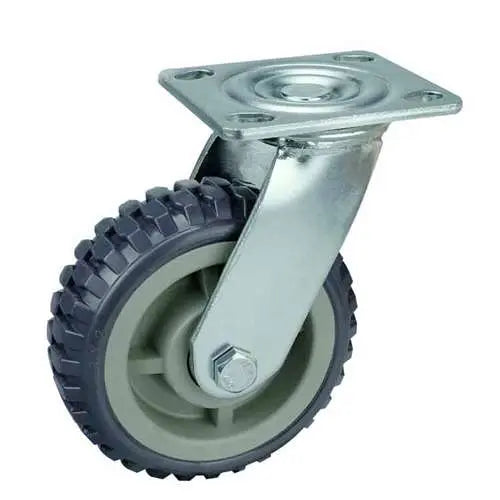

4" Inch Caster 441 lbs Swivel Polypropylene core and Polyurethane Top Plate

4" Inch Caster 441 lbs Swivel Polypropylene core and Polyurethane Top Plate

Regular price $13.25 USD
Regular price Sale price $13.25 USD
Sale Sold out
SKU: 4inch-Swivel-Caster-021
4" Inch Caster 441 lbs Swivel Polypropylene core and Polyurethane Top Plate
  • Item Name: 4inch-Swivel-Caster-021
  • Wheel Diameter: 100mm
  • Wheel Width: 50mm
  • Wheel Diameter: 4" Inch = 100mm
  • Overall Height: 142mm
  • Overall Height Inch: 5.591"
  • Mounting Type: Top Plate
  • Top Plate Size: 100mm x 115mm
  • Hole distance: 75mm x 85mm
  • Wheel Core: Polypropylene core and Polyurethane
  • Tire: Polypropylene core and Polyurethane
  • Bearing type: Double ball beaing
  • Load Capacity: 441 lb
  • Mounting: Swivel
  • Temperature Range: -40 to 180 F

  • Don't think too much, use 4inch-Swivel-Caster-021 to get your DIY move and manuver around. This wheel caster has a wheel diameter of 100mm or 3.937" inch in inches. The wheel has a width of 50mm=1.969" inch. The caster dimensions heightwise is 142mm/5.591" inch. Top Plate is the method of installing the caster to your equipment, the dimensions are 100mm x 115mm with the holes distance of 75mm x 85mm. Low drag was achieved by a Polypropylene core and Polyurethane core on a Polypropylene core and Polyurethane tire spinning freely with a Double ball beaing. Each caster will carry the load of 441 lb and is Swivel type. Temperature range = -40 to 180 F. Enjoy our 4inch-Swivel-Caster-021, we wish all the best in your project.
